Fire and Explosion Hazards of Bucket Elevators

In many industrial facilities, bucket elevators are among the primary types of mechanical conveying equipment and often operate continuously around the clock. From a fire and explosion safety perspective, however, they require particular attention. Despite their relatively simple design, they can present significant fire and explosion hazards, although in practice they are not always regarded as high-risk components of an installation.

Fire and explosion risk in bucket elevators

The scale of the hazard is reflected in data published by Dust Safety Science. According to its 2023 report, approximately 11% of recorded combustible dust incidents involved bucket elevators and other mechanical conveying equipment. The incidents analyzed also resulted in 21 fatalities.

In practice, bucket elevators rarely operate as standalone units. They are usually part of a larger process system, connecting successive stages of production. As a result, a fire or explosion initiated in a single elevator can quickly propagate to adjacent equipment, such as silos, dust collection systems, dryers, or other conveying equipment. For this reason, the safety of a bucket elevator should be assessed not only in relation to the equipment itself, but also in the context of the entire process line.

Why are bucket elevators considered high-risk equipment?

Bucket elevators are among the types of equipment in which nearly all of the conditions required for a dust fire or explosion can occur simultaneously: the presence of combustible material, movement of buckets at high linear speed that can disperse dust and create an explosive atmosphere, potential ignition sources, and a partially enclosed space in which the effects of ignition can develop rapidly.

A particular hazard is the accumulation of dust on internal surfaces. This also applies to elevators handling coarse materials, where dust concentrations within the operating space may remain relatively low during normal operation. During service, however, fine product fractions may be generated by attrition and settle on the casing walls, buckets, and structural elements. Even a dust layer less than 1 mm thick may form a potentially explosive atmosphere if it is dispersed.

In the event of belt misalignment, excessive vibration, friction, or other operating disturbances, deposited dust may be re-entrained into the operating space. Importantly, the same mechanical fault can simultaneously disperse the dust and create an effective ignition source. It is this combination of events that can cause an apparently minor malfunction to escalate rapidly into a serious process incident.

An additional risk factor is the specific geometry of the elevator. In the event of a fire, the vertical structure promotes a chimney effect, facilitating the upward movement of hot gases and the supply of air to the combustion zone. During an explosion, the buckets act as obstructions to the flow, increasing turbulence and potentially accelerating flame propagation and pressure rise. As a result, the effects of an incident can rapidly extend over the full height of the equipment and propagate to adjacent parts of the installation.

An explosion in a bucket elevator does not develop in the same way as in a conventional process vessel

In conventional process vessels or filter units, explosion behavior is generally more predictable and depends to a large extent on the volume of the equipment and the properties of the dust. In bucket elevators, the situation is considerably more complex. The slender geometry of the structure, the presence of buckets, and the confined internal space all influence flame propagation and pressure development, resulting in phenomena that are less typical of simple process vessels.

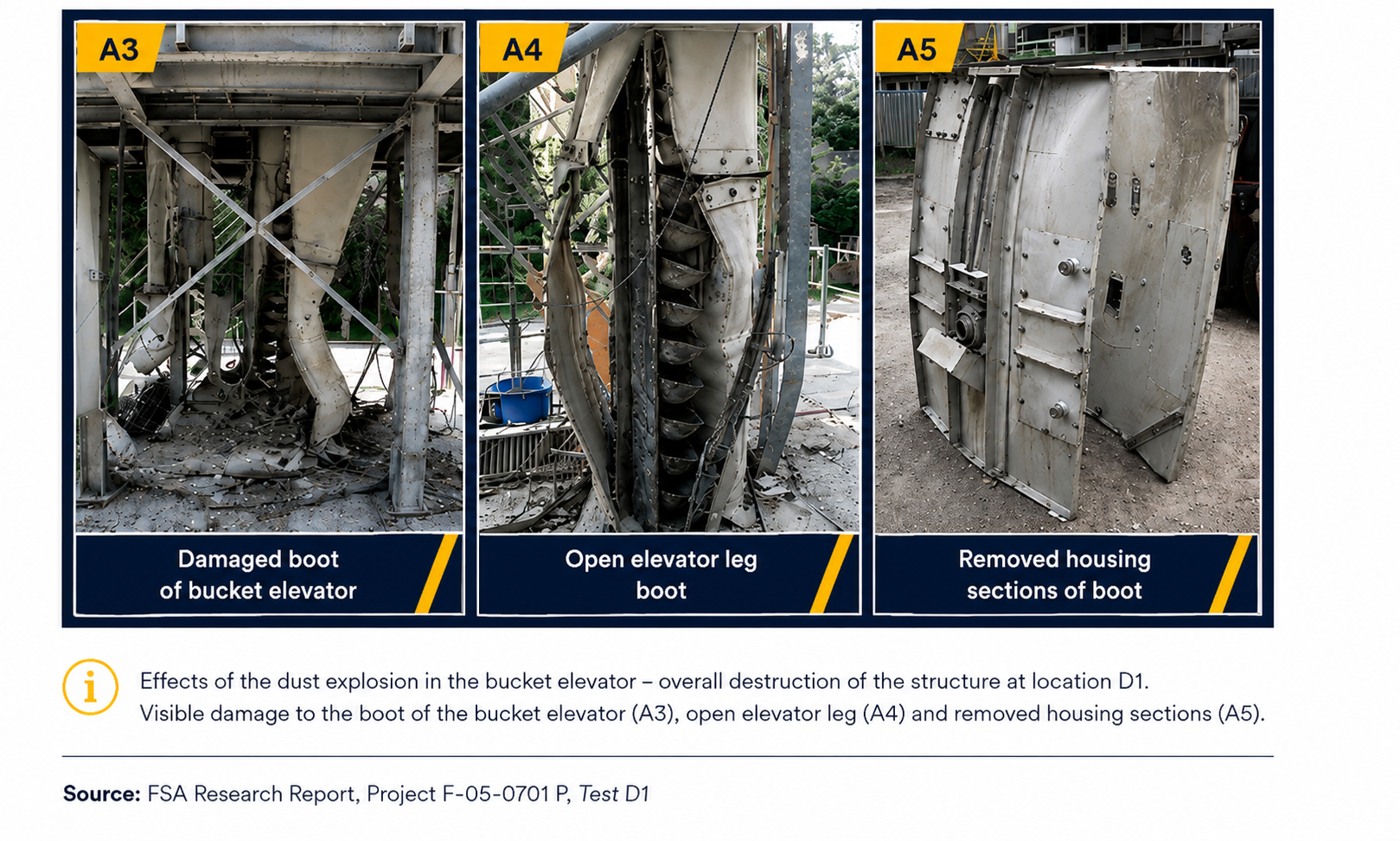

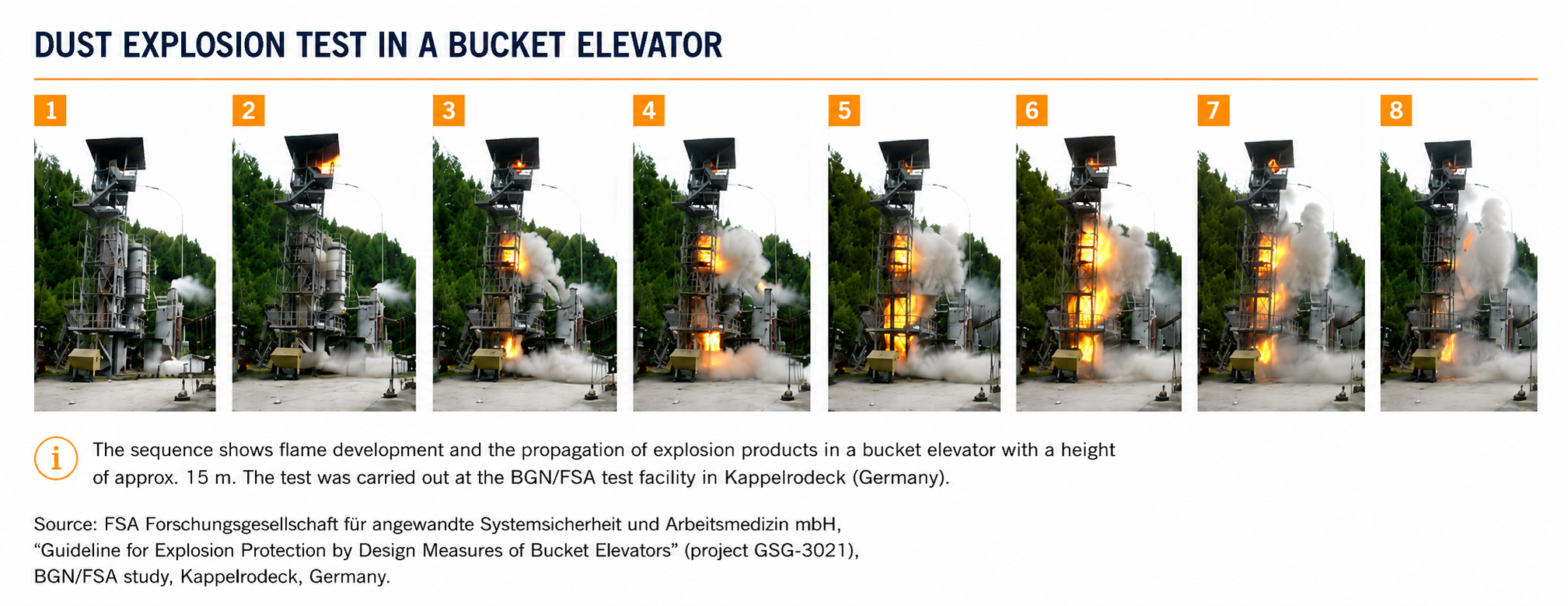

Full-scale tests conducted on single-leg and twin-leg bucket elevators have shown that the flame can propagate from the head all the way to the boot of the elevator. Secondary flame propagation, repeated ignition events, and complex combustion mechanisms have also been observed. From an explosion protection design perspective, this means that a bucket elevator should not be treated simply as two process volumes connected by a vertical conveying leg. The specific geometry of the equipment and the presence of internal components have a direct influence on explosion development and should therefore be taken into account when selecting explosion protection measures.

How can the consequences of an explosion be mitigated?

The selection of explosion protection measures for bucket elevators requires consideration of both the specific characteristics of the equipment and the potential pathways for fire and explosion propagation between individual process components.

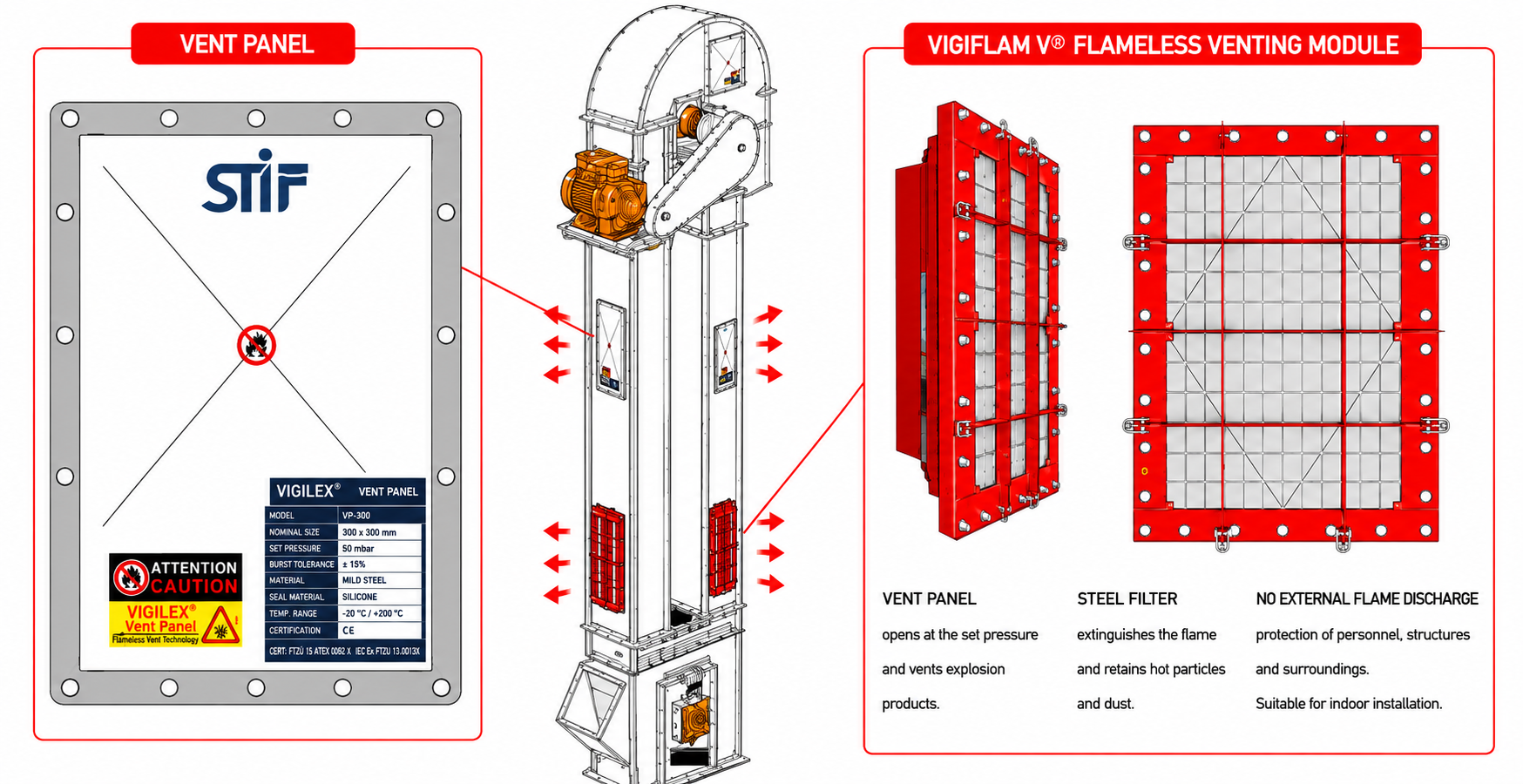

One of the most commonly used methods for limiting the consequences of an explosion is explosion venting. In bucket elevators, however, not only the total venting area is important, but also the number and arrangement of explosion vent panels along the full height of the elevator, including their position in relation to the belt and buckets. Studies have shown that increasing the distance between vent panels can lead to a significant increase in reduced explosion pressure. In some configurations, this pressure may exceed the structural strength of the equipment, resulting in deformation or failure. This means that two systems with the same total venting area, but with different numbers and locations of vent panels, may provide very different levels of protection.

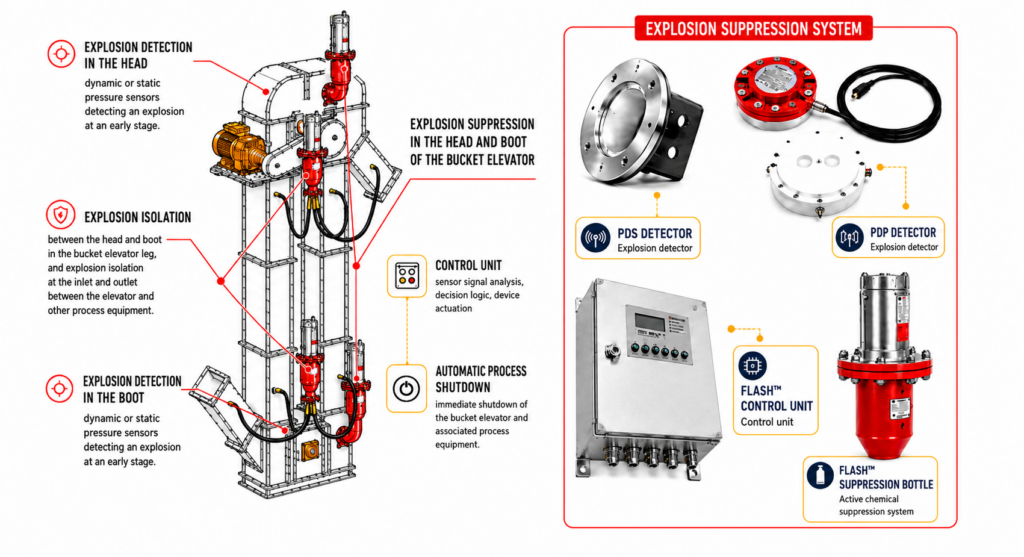

An alternative solution is explosion suppression, used primarily where the safe discharge of explosion effects to the surroundings is difficult or impossible, particularly inside buildings or in close proximity to other process equipment.

Explosion isolation between process units is equally important. Without effective isolation, flame and pressure can propagate to adjacent equipment, potentially triggering secondary explosions that may be more severe and affect a substantial part of the process installation.

Why is stopping the elevator so important?

Experimental research highlights another significant issue. If a bucket elevator continues operating after a fire or explosion has occurred, the movement of the buckets will continue to transport material into the flame zone. In practice, this means a continuous supply of fuel to the developing incident, sustaining combustion and increasing the risk of further ignitions and secondary explosions.

For this reason, the automatic shutdown of the elevator should be treated as part of the safety system rather than merely as a standard drive control function. Effectively stopping the transport of material can be critical to limiting the consequences of a fire or explosion. This requires signals from monitoring systems to be properly integrated with appropriately designed safety functions.

Good prevention is not enough

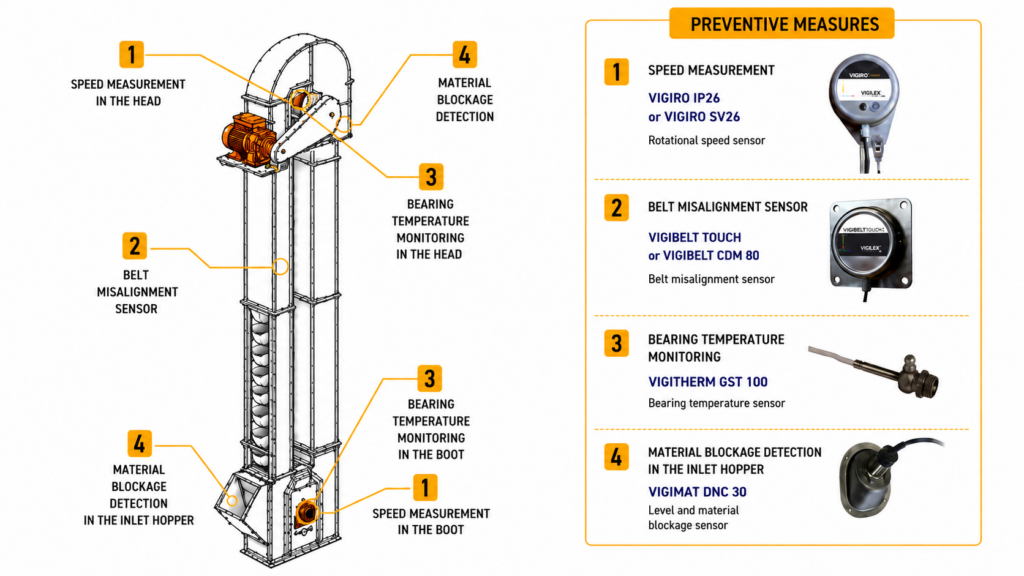

Monitoring systems for belt slip, belt misalignment, bearing temperature, rotational speed , and blockages are standard features in most modern bucket elevators. Their importance is difficult to overstate, as they make it possible to detect many abnormal operating conditions before they lead to a fire or explosion.

However, these are primarily preventive measures intended to reduce the probability of ignition. They do not mitigate the consequences of a fire or explosion if one nevertheless occurs. This means that even a properly functioning monitoring system does not completely eliminate the risk of an incident. Depending on the properties of the dust and the outcome of the risk assessment, additional explosion protection measures may therefore be required to limit the consequences of such an event.

The effectiveness of monitoring also depends on the quality of the overall safety system. Key factors include the way safety functions are implemented, the response time of the control system, and the reliability of process shutdown following detection of a hazardous condition.

The human factor must not be overlooked either. False alarms, contaminated sensors, operational difficulties, or pressure to maintain production continuity may lead to safety devices being bypassed or temporarily disabled. In many post-incident investigations, such apparently minor departures from the original design assumptions have proved to be important factors in the escalation of serious incidents.

Conclusion

Operational experience and analyses of real incidents show that even well-designed and properly maintained installations are not completely free from the risk of fire or explosion.

In the case of bucket elevators, the scale of the hazard is determined not only by the possibility of ignition, but above all by the ease with which flame and pressure can propagate to other parts of the installation. The safety of this type of equipment should therefore always be assessed in the context of the entire process system.

Effective risk management requires a combination of proper operation, condition monitoring, appropriately designed safety functions, and suitable explosion protection measures. Ultimately, the safety of an installation depends not only on its ability to prevent ignition, but also on its ability to limit the consequences of an incident if one occurs despite the safeguards in place.
