Origins of Polish explosion protection
An explosion is one of the most dynamic phenomena encountered in industry. Regardless of whether it occurs in an underground mine working, a grain silo, a chemical plant, or a production hall, its course is governed by the same laws of physics. The type of fuel, spatial geometry, and process conditions may vary, but the mechanism of explosion initiation and propagation remains unchanged.
Modern methods of designing explosion protection systems are the result of many years of research into explosion phenomena. Today, designers rely on standards, guidelines, computational models, and proven engineering solutions. These tools, however, are the outcome of decades of operational experience gained in industrial facilities and research conducted both on a laboratory scale and under real operating conditions.
It is commonly assumed that the development of explosion protection in Poland began with the implementation of the ATEX directives. In reality, this was merely another stage in a much longer process. The foundations of the national explosion protection system had been established many years earlier, primarily in response to technical challenges encountered in mining.
It was in mining that the need first arose to understand the mechanisms of methane and coal dust explosions, determine the conditions under which they occur, and develop methods to mitigate their consequences. Over time, solutions originally developed for mining began to be applied in other industrial sectors. With the growth of the chemical, food processing, woodworking, and power industries, these methods found application in facilities where hazards resulted from the presence of flammable gases, vapours of flammable liquids, or combustible industrial dusts.
As a result, a national explosion protection system evolved in two parallel domains. The first covered mining, where methane and coal dust explosions were the dominant concern. The second addressed non-mining industries, where requirements concerning buildings, installations, and technological processes involving flammable substances were gradually developed. Although these two areas evolved independently, they were based on the same physical principles and increasingly relied on the same research infrastructure.
Understanding this evolution provides a different perspective on contemporary explosion protection requirements. Many solutions regarded today as standard engineering practice did not originate with the introduction of European regulations. Instead, they are the result of domestic experience and research developed over nearly the entire 20th century.
Mining as the cradle of Polish explosion protection engineering
The development of mining, particularly the exploitation of gassy deposits and hard coal seams, revealed hazards associated with the presence of flammable gases and combustible dusts. Even at an early stage of mining operations, it was understood that their ignition could lead to an explosion, while basic safety rules were derived primarily from practical mining experience. As industry developed, however, there was an increasing need to describe these phenomena quantitatively and to develop methods aimed not only at preventing ignition but also at limiting the consequences of an explosion.
Increasing mining depths and progressively more demanding extraction conditions meant that practical experience alone was no longer sufficient. Research became necessary to determine the ignition conditions of explosive mixtures, understand explosion behaviour, and evaluate the effectiveness of protective systems. During this period, the approach gradually shifted from empirical knowledge towards a quantitative engineering description of explosion phenomena.

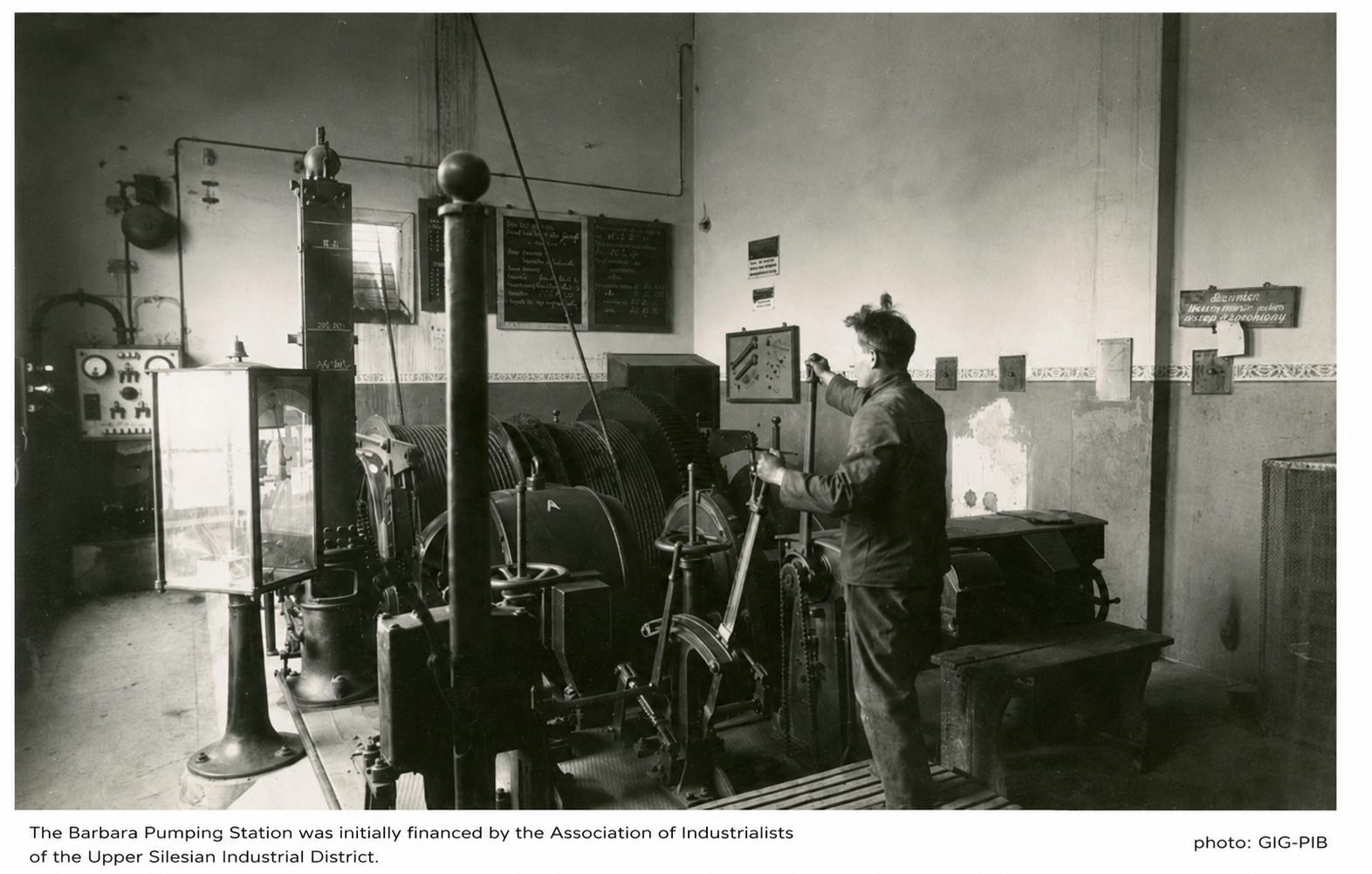

One of the most important milestones in the development of Polish research was the establishment of the “Barbara” Experimental Mine in 1925. Contrary to a common simplification, this did not mark the beginning of explosion safety research. The already existing Experimental Station and Central Mine Rescue Station were transferred to the newly established mine, creating a specialised centre capable of conducting full-scale testing.

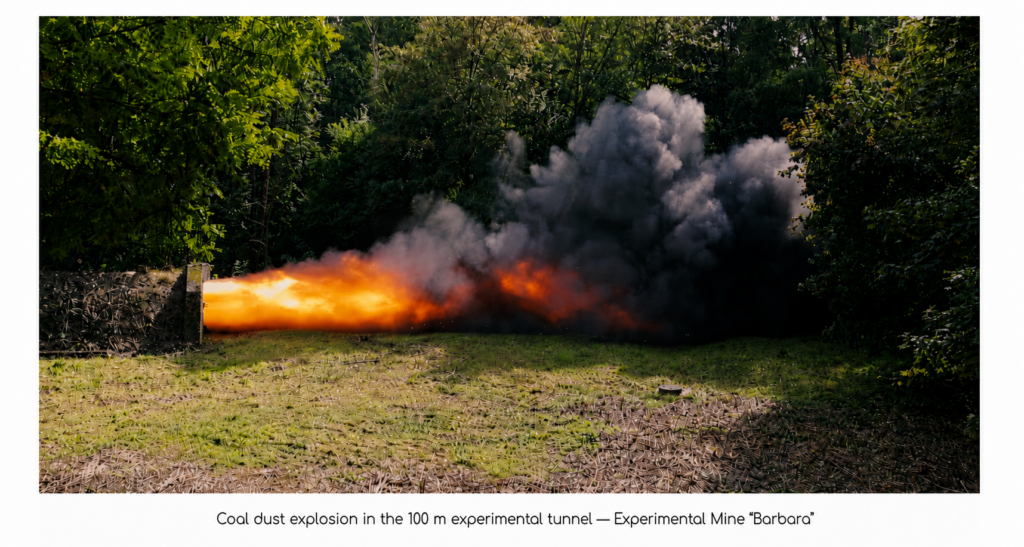

The ability to conduct controlled explosions in experimental underground workings marked a major breakthrough in Polish explosion research. Investigations were no longer limited to analysing the consequences of mining disasters. Systematic measurements of explosion parameters began, including studies of flame propagation, pressure development, the effectiveness of explosion barriers, and the behaviour of equipment intended for use in explosive atmospheres. Professor Wacław Cybulski made a particularly important contribution to this field. His research into coal dust explosibility and methods of mitigating explosion consequences ranks among the major achievements of the Polish school of explosion protection. This work made it possible not only to better understand explosion mechanisms, but also to develop technical solutions based on experimental evidence rather than operational experience alone.
After World War II, the role of the national scientific and research centre was assumed by the Central Mining Institute (GIG), within which the “Barbara” Experimental Mine operated. Research carried out there expanded beyond methane and coal dust hazards in mines to include the explosibility of gases, vapours of flammable liquids, and industrial dusts occurring in chemical, food processing, woodworking, and power generation facilities. As a result, experience gained in mining gradually began to find application in non-mining industries as well.
In parallel, the system of supervision over mining safety continued to develop. An important role was played by the State Mining Authority (WUG), which, in addition to its supervisory responsibilities, participated in the development of technical requirements and explosion prevention principles. In practice, this resulted in close cooperation between research institutions, mining authorities, and industry, allowing research findings to be implemented relatively quickly in engineering practice.
This system of research, standardisation, and supervision laid the foundation for the Polish school of explosion protection. Research findings were used not only to develop explosion prevention methods, but also as the basis for a national system of testing, evaluating, and certifying equipment intended for use in explosive atmospheres. In subsequent years, experience gained in mining became the starting point for the development of national standards, testing methods, and regulations that were later applied in non-mining industries as well.
From methane hazards to general industry
For many years, explosion hazards were associated primarily with mining. It was there that the most serious hazards involving methane and coal dust occurred, and research focused mainly on ensuring the safe operation of mines. As industry expanded, however, technological processes involving other gases, vapours of flammable liquids, and combustible dusts became increasingly common.
The rapid growth of the chemical, food processing, woodworking, power, and pharmaceutical industries meant that explosion hazards were no longer confined to mines. Risks also appeared in grain silos containing organic dusts, paint shops and solvent storage facilities where vapours of flammable liquids were present, and numerous technological processes involving gases capable of forming explosive atmospheres.
Despite the diversity of industrial processes, it became clear that the physical mechanism of an explosion remained the same. Whether the hazard involved methane, hydrogen, solvent vapours, or flour dust, an explosion resulted from the ignition of a flammable mixture, and its development was governed by the same laws of physics. This meant that knowledge gained through mining research could also be applied in other industrial sectors.
This did not, however, mean that mining solutions could simply be transferred directly to other industries. Industrial facilities differed in their construction, technologies, and the properties of the substances involved. Hazard assessment methods and protective measures therefore had to be adapted to new operating conditions. Methods for testing the explosibility of industrial gases and dusts were developed, characteristic explosion parameters were determined, and requirements were established for equipment and installations intended for use in explosive atmospheres.
During this period, explosion protection expanded beyond mining and gradually became a distinct field of industrial safety engineering. Research carried out by national scientific and technical institutions began to be reflected in technical standards and regulations covering an increasingly broad range of industrial activities.

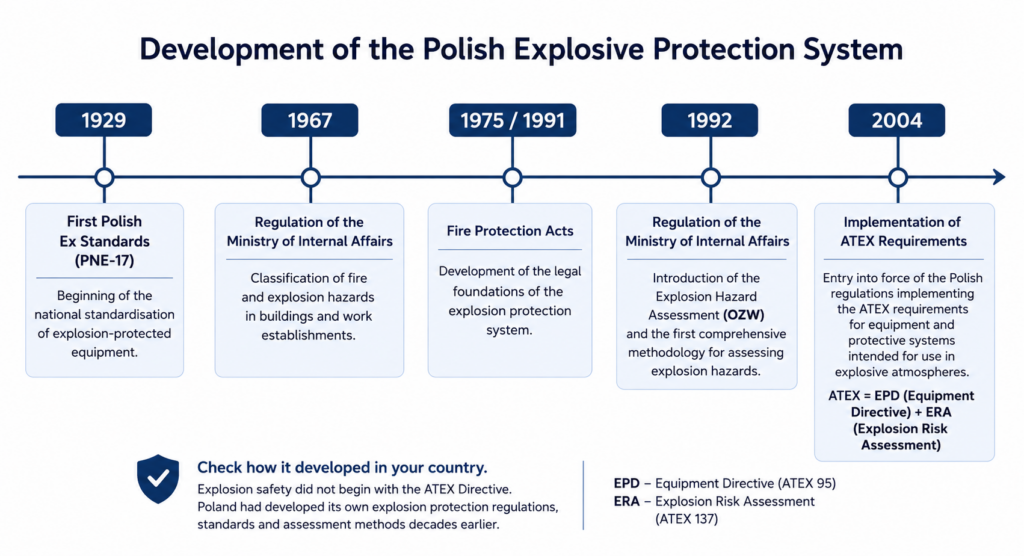

Shaping the national explosion protection system
As research progressed and flammable substances became increasingly widespread in industry, there was a growing need to standardise the principles governing the design, construction, and operation of equipment and installations used in explosive atmospheres. Knowledge developed by national research centres had to be translated into technical requirements that could be applied by designers, manufacturers, and operators of industrial installations.
Translating research findings into engineering practice required uniform rules for testing, evaluating, and certifying equipment intended for use in explosive atmospheres. In response to this need, domestic technical standardisation developed, systematising requirements concerning equipment design, testing methods, and safe operating principles.
An important step was the development of the first national standards concerning explosion-protected equipment. As early as 1929, the Association of Polish Electrical Engineers (SEP) published standard PNE-17:1929, Regulations for the Construction and Operation of Heavy-Current Electrical Installations in Underground Mines, which established requirements for equipment used in mines with methane hazards. On the basis of this standard, the “Barbara” Experimental Mine conducted tests and issued certificates for explosion-protected equipment, laying the foundations for the national system of safety assessment. In the following years, further standards and technical requirements were developed, covering an increasingly wide range of equipment and industrial applications.

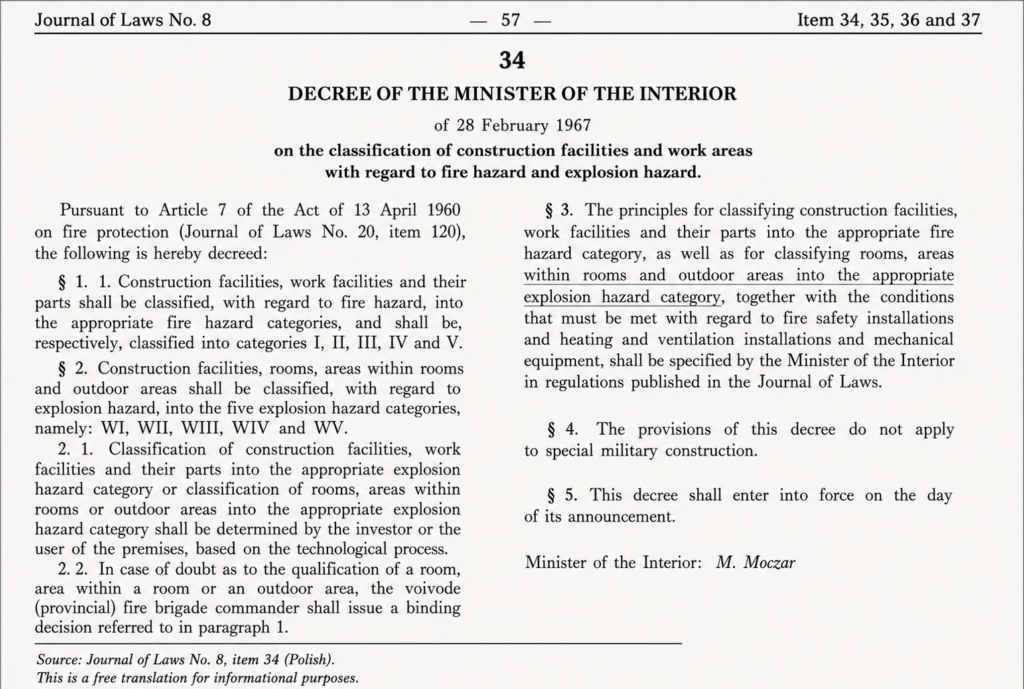

A natural consequence of this development was the extension of requirements beyond individual pieces of equipment to entire industrial facilities and the technological processes carried out within them. An important milestone in this process was the 1967 Regulation of the Minister of Internal Affairs, which introduced a classification of fire and explosion hazards for buildings and technological processes. This regulation was among the first nationwide legal acts to systematise explosion safety from the perspective of an entire facility rather than individual pieces of equipment.
In the following years, both fire protection regulations and technical requirements concerning the design and operation of industrial installations continued to develop. At the same time, national methods for testing the explosion parameters of combustible substances were refined, allowing increasingly accurate assessment of hazards occurring in technological processes. As a result, subsequent requirements could be based not only on operational experience, but also on research conducted by national scientific institutions.
A major breakthrough came in 1992, when the Regulation of the Minister of Internal Affairs on the fire protection of buildings, other structures, and areas entered into force. For the first time, this regulation comprehensively established the principles of the Explosion Hazard Assessment (Polish: Ocena Zagrożenia Wybuchem, OZW). It introduced definitions for rooms presenting an explosion hazard, criteria for hazardous area classification, and an assessment methodology based on the analysis of explosion parameters, including the predicted pressure increase.
The 1992 regulation marked the culmination of several decades of development of the national explosion protection system. It brought together experience gained in mining, research findings from Polish scientific institutions, and the achievements of domestic technical standardisation. It represented the first coherent explosion hazard assessment system developed for industry as a whole and served as a reference point for designers, fire protection experts, and operators of industrial facilities before the process of harmonisation with European requirements began. In practice, it completed a long phase in the development of Poland’s national explosion protection system, whose foundations had been laid long before the implementation of the ATEX directives.
Shortly afterwards, further standards in this field appeared, including the PN-92/E-05201 series concerning methods for assessing fire and explosion hazards caused by static electricity, as well as standards PN-92/E-05202, PN-92/E-05203, and PN-E-05204:1994.
Conclusions – the significance of Poland’s national explosion protection heritage
The history of explosion protection in Poland demonstrates that modern explosion safety requirements did not originate with the implementation of the ATEX directives. They are the result of the long-term development of domestic engineering knowledge, scientific research, and practical experience gained during the operation of industrial facilities.
Over the decades, research methods were refined, laboratory infrastructure was developed, and engineering solutions were introduced that gradually became reflected in national standards and regulations. One of the most important results of this process was the development of the principles of Explosion Hazard Assessment (OZW), which formed part of the Polish explosion protection system before harmonisation with European Union requirements began.
The alignment of Polish regulations with the ATEX directives therefore did not mean creating explosion protection from scratch. It represented the next stage in its development, expanding the national framework to incorporate requirements resulting from the European approach to explosion safety.
The coexistence of national requirements and requirements introduced through the ATEX framework means that Polish engineering practice currently involves two parallel assessments: Explosion Hazard Assessment (Polish: Ocena Zagrożenia Wybuchem, OZW) and Explosion Risk Assessment (Polish: Ocena Ryzyka Wybuchu, ORW). Although these assessments are often treated as equivalent, they serve different purposes, arise from different legal bases, and answer different engineering and safety questions. This distinction will be discussed in the next article.
Feel free to get in touch if you would like to arrange training for your team or discuss a programme tailored to your organisation’s specific needs.
Author: Sebastian Słaboszewski
